EvoControl Ventilation - Light - MPO

This quick guide applies to standard units without accessories.

Change operating mode

Step 1:

To change the operating mode, select the row and press Enter.

Step 2:

Select new operating mode with Up and Down Arrows and confirm with Enter.

Adjusting air flows

Step 1:

Select “Menu” and press Enter.

Step 2:

Scroll down to “Settings” and press Enter.

Step 3:

Enter authorisation code 6374 (8990 for advanced) and press Enter. Enter one digit at a time; this is done by Arrow up and Down arrow and confirmed by Enter.

Confirm the dialled code by pressing Enter when “-” is selected.

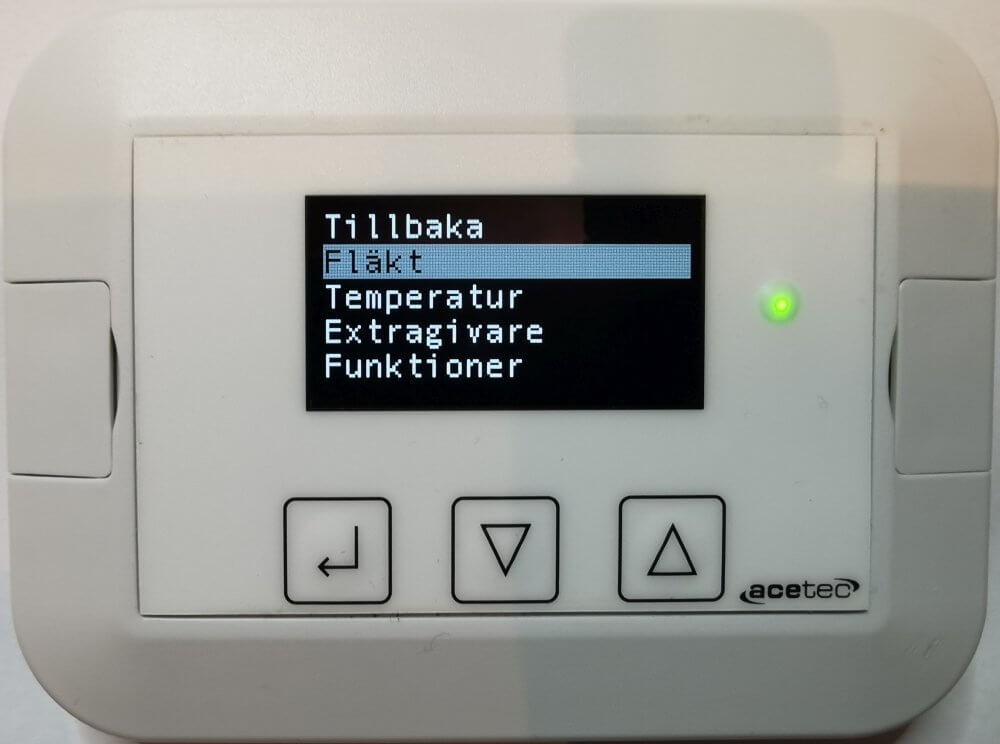

Step 4:

Select “Fan” and press Enter.

Step 5:

Select the flow you want to adjust and press Enter.

Step 6:

Increase or decrease the value by Arrow up or Down arrow and then press Enter.

Step 7:

Confirm by selecting “Save = Yes” and press Enter.

• Repeat steps 5-7 to change the parameters you need.
• Pressures Back to access the start menu.

*Units with external controls, e.g. cooker hood, the “Priority order” under “Sensors” in settings may need to be changed.
- Cooker hood 251 “Last input” should be selected.
- Cooker hood 392 “Prio” should be selected.
- Cooker hood Monolit “Prio” should be selected.
